Since OEM Armrests cost £10,000, The cheapest alternative is the Rover armrest.

You will need, a rover armrest, You can pick one up for about £5-£20 from a scrappy, or £30-£40 on ebay (Depending on Colour/ Trim etc, some come in Brown, grey and black, aswell as Cloth and leather. Obviously, a Black leather one, your looking about £45 on eBay).

I picked mine up for £5 from some local "banger boys", who informed me they "smash" 4-5 up a month....Savages!

Now, its not a Direct fit as i first though, i had followed a How-To on CRX-UK, and the end result was really nice! and it fit in really well.

Unfortunatly, i forgot to remember the CRX and Civic Dashs are different.

Warning, you WILL need to cut and butcher your center console.

First, remove your center console and sit the armrest in place, the front 2 screwholes in the armrest, line up with the OEM screw holes (At this point, i replaced the Screws, in favour of the 8mm bolts use in the rover)

Heres mine fitted without the center console.


The front 2 holes line up, but there isnt any imediate way of securing the rear end down, i did experiment with several kinds of clamps etc, but non seemed to make much different, the main problem is that the handbrake cables sit directly under the rear bolt holes.

These are not really needed, as it wont go anywhere with just the front 2, and being between the seats also stops it moving to much.

The armrest also has a "lip" on the end, i chose to cut this off, although if i had a spare one to use, i would leave it on, and find a way of attaching the center console to it.

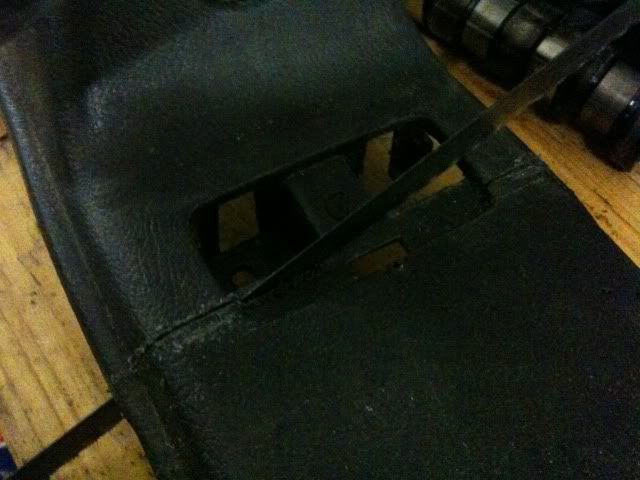

you will also need to cut the center console, pretty much in half.

(The last picture is how much i needed to take off so it lined up)


And the finished article.

_________________
1988 RT4WD Shuttle - Supercharged, VTEC Swapped Track Toy.
1988 RT4WD Shuttle - Lifted Daily Beater.


Top
 Profile

PostPosted: Sun Feb 20, 2011 4:13 pm
Offline
Lvl2 Potential Hazard
Lvl2 Potential Hazard

Joined: Thu Dec 02, 2010 9:05 pm
Posts: 131
Thank you very much just what I needed :)


Top
 Profile

PostPosted: Sun Feb 20, 2011 5:25 pm
Offline
Lvl2 Potential Hazard
Lvl2 Potential Hazard

Joined: Thu Dec 02, 2010 9:05 pm
Posts: 131
I had it all out and ready to cut earlier but did not have the guts to, now I have , taken like 10min and much nicer interior now :)


Top
 Profile

PostPosted: Sun Feb 20, 2011 9:12 pm
Offline
Lvl2 Potential Hazard
Lvl2 Potential Hazard

Joined: Thu Dec 02, 2010 9:05 pm
Posts: 131
I had it all out and ready to cut earlier but did not have the guts to, now I have , taken like 10min and much nicer interior now :)


Top
 Profile

PostPosted: Sun Apr 17, 2011 1:52 pm
Offline
Lvl3 Street Racer
Lvl3 Street Racer

Joined: Sun Apr 10, 2011 11:39 am
Posts: 274
could anyone tell me what rover this is out of?


Top
 Profile

PostPosted: Sun Apr 17, 2011 2:53 pm
Offline
Site Admin
Site Admin
User avatar

Joined: Thu Mar 01, 2007 4:15 pm
Posts: 10891
Location: Lincolnshire
you will find one in a "Wedge Shape" Rover. The ones with honda engines.

the K Series rovers have a different design

_________________
1988 RT4WD Shuttle - Supercharged, VTEC Swapped Track Toy.
1988 RT4WD Shuttle - Lifted Daily Beater.


Top
 Profile

PostPosted: Mon Apr 18, 2011 1:42 am
Offline
Lvl3 Street Racer
Lvl3 Street Racer

Joined: Sun Apr 10, 2011 11:39 am
Posts: 274
thankyou gizmo, il get trawling the scrappies asap


Top
 Profile

PostPosted: Sat Feb 11, 2012 2:07 pm
Offline
Learner - Newbie
Learner - Newbie

Joined: Wed Nov 16, 2011 4:38 pm
Posts: 5
Hello, maybe someone tried to fit whole rover interior into EF civic sedan ? Intrested it will fit dashboar, doorboars, seats, carpet, power windows, and etc. Thanks, maybe if you have already done this, post some pics :)


Top
 Profile

PostPosted: Sun Feb 12, 2012 10:27 am
Offline
Learner - Newbie
Learner - Newbie

Joined: Wed Nov 16, 2011 4:38 pm
Posts: 5
Anybody ?


Top
 Profile

PostPosted: Tue Feb 14, 2012 4:42 pm
Offline
Site Admin
Site Admin
User avatar

Joined: Thu Mar 01, 2007 4:15 pm
Posts: 10891
Location: Lincolnshire
You serious??

_________________
1988 RT4WD Shuttle - Supercharged, VTEC Swapped Track Toy.
1988 RT4WD Shuttle - Lifted Daily Beater.


Top
 Profile

PostPosted: Wed Apr 18, 2012 11:01 am
Offline
Learner - Newbie
Learner - Newbie

Joined: Mon Apr 16, 2012 10:06 am
Posts: 1
:o i need to geht me one of these a s a p
Thanks gizmo


Top
 Profile

PostPosted: Thu Nov 08, 2012 10:00 pm
Offline
Learner - Newbie
Learner - Newbie

Joined: Tue Sep 18, 2007 3:34 pm
Posts: 5
Location: London
http://www.ebay.co.uk/itm/ROVER-200-400 ... 35c157459e

Is that the one?


Top
 Profile

PostPosted: Thu Nov 08, 2012 10:34 pm
Offline
Site Admin
Site Admin
User avatar

Joined: Thu Mar 01, 2007 4:15 pm
Posts: 10891
Location: Lincolnshire
aye!

_________________
1988 RT4WD Shuttle - Supercharged, VTEC Swapped Track Toy.
1988 RT4WD Shuttle - Lifted Daily Beater.
